Reliable, simple and ready-to-use power protection

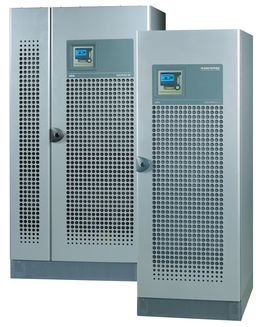

Three/three phase UPS from 200 to 300 kVA
The solution for
- Server rooms
- Service sector
- Infrastructure
- Healthcare sector
- Light industrial applications
Advantages
A complete, cost-effective solution
- Online double conversion mode with an output power factor of 0.9 providing 12% more active power compare to UPS with a power factor of 0.8
- Dual input mains allows you to manage independent power sources
- Increased system availability placing two UPS in parallel for 1+1 redundancy
- Internal manual bypass for easy maintenance without power interruption
- Multilanguage display
Tailored to your environment
- Saves space with a reduced footprint and optimized cabinet size
- Low noise level
- Compact, lightweight and easy to install
- No neutral required on rectifier input
- Two-wire battery connection (only +/-)
- Extended battery life and performance with exclusive EBS battery charging management for increased battery life
Standard electrical features
- Dual input mains
- Integrated maintenance bypass
- Backfeed protection: detection circuit
- EBS (Expert Battery System) for battery management
Electrical options
- External battery cabinet
- External temperature sensor
- Additional battery chargers
- Shared battery
- Galvanic isolation transformer
- Parallel kit
- ACS synchronization system
Standard communication features
- 2 slots for communication options
Communication options
- ADC interface (configurable voltage-free contacts)
- MODBUS TCP
- MODBUS RTU
- PROFIBUS
- NET VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems
Remote monitoring service
- LINK-UPS, remote monitoring service that connects your UPS to your Critical Power specialist 24/7
Technical data
| Sn [kVA] |
|
||
| Pn [kW] |
|
||
| Parallel configuration | up to 6 units |
INPUT
| Rated voltage | 400 V 3ph |
| Voltage tolerances | 240 V to 480 V(1) |
| Rated frequency | 50/60 Hz ± 10% |
| Power factor / THDI | 0.99 / < 3% |
Output
| Rated voltage | 400 V |
| Voltage tolerance | static load ±1% dynamic load in accordance with VFI-SS-111 |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 2% (configurable from 1% to 8%) |
| Crest factor | 3:1 |
Bypass
| Rated voltage | rated output voltage |
| Voltage tolerance | ± 15% (configurable with from 10% to 20%) |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 2% (configurable for Genset compatibility) |
Efficiency
| Online mode @ 100 % of load | up to 94% |
Environment
| Operating ambient temperature | from 0 °C up to 40(1)°C (from 15 °C to 25 °C for maximum battery life) |
||
| Relative humidity | 0% - 95% without condensation | ||
| Maximum altitude | 1000m without derating (max. 3000 m) | ||
| Acoustic level at 1 m (ISO 3746) |
|
UPS cabinet
| Dimensions W x D x H |
|
||
| Weight |
|
||
| Degree of protection | IP20 | ||
| Colours | RAL 7012, silver grey frontal door |
Standards
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| Performance | IEC/EN 62040-2, AS 62040.2 |
| EMC | IEC/EN 62040-3, AS 62040.3 |
| Product declaration | CE, RCM (E2376) |
(1) Conditions apply.
